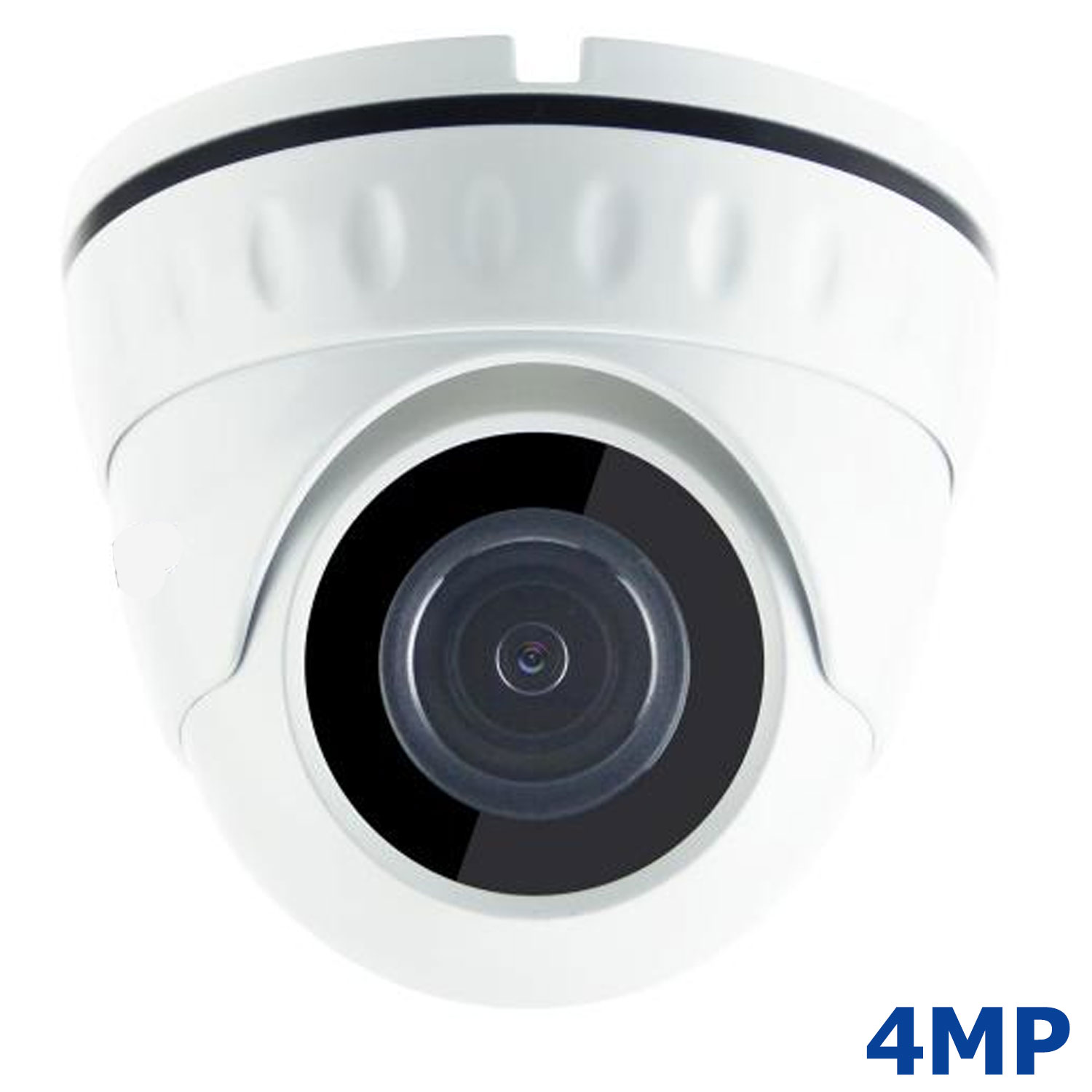

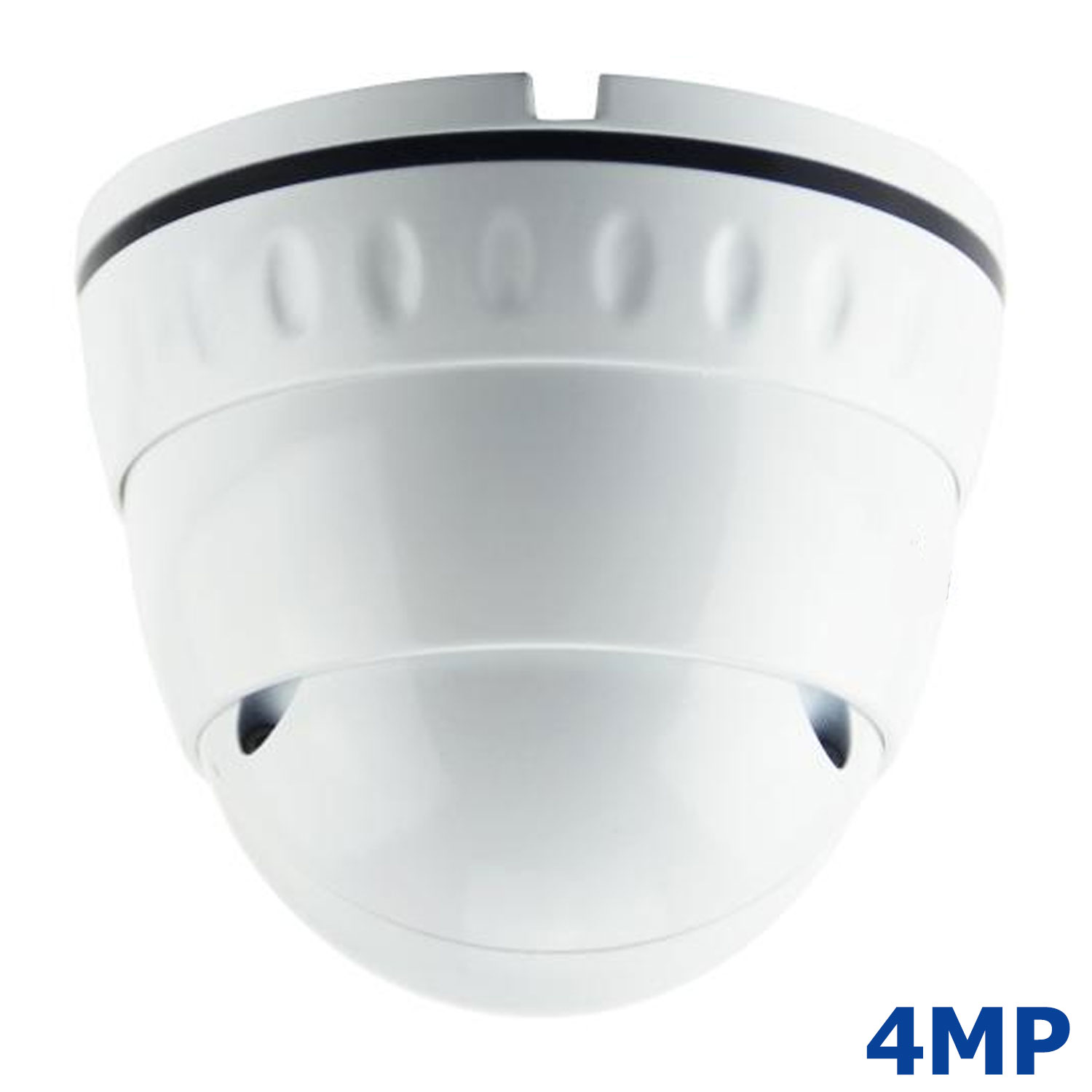

מצלמת אבטחה LPR LPDCS400 4MP

מצלמת אבטחה LPR LPDCS400 4MP

SPECIFICATION
Model NO. LPDCS400

Camera
Image Sensor OV4689
Main processor Hi3516D
Resolution 4MP
Effective Pixels 2688(H)*1520(V)
Compression H.264/H.265/JPEG/AVI
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network

Lens
Focus Length 2.8-12mm
Focus Control Manual
Lens Type Manual
Pixels 5M Pixels
Night Vision
Infrared LED 14μ x 24PCS
Infrared Distance 30M
IR Status Under 10 Lux By CDS
IR Power On CDS Auto Control

Network
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF Support ONVIF 2.4
P2P YES, Support QR Code
POE Optional, Support IEEE 802.3af
WIFI N/A
Video Delay 0.3S (Within the Lan)
Main Stream 1 2560*1440@20fps
Main Stream 2 2304*1296@30fps
Main Stream 3 1920*1080@30fps
Sub Stream 1
720*480@20fps
720*480@30fps
Sub Stream 2 /
Sub Stream 3 /
Tri Stream
352*288@20fps
352*288@30fps

IE Brower IE8-11, Google Chrome, Firefox, Safari, Mac Safari
Smart Phone iPhone, iPad, Android, Android Pad

Camera Features
Day/Night Color/ B&W (IR-CUT )
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)
Corridor Pattern Support
Defog Mode Support
ROI Support
Motion Detection Support
Privacy Masking 3 Rectangular Zone
WDR Support
Recording Mode NVR/NAS/CMS/Web

Language
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French,
Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands

General
Housing Metal ,IP66
Anti-cut Bracket NO
IR Cut Filter YES

Operation Temperature -20℃ ~ +60℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max

Power Source DC12V±10%, 700mA
Dimension ￠131 x 93(H) mm
Weight 800g
