רב מודד וולט סטיק עמיד במים UNI-T UT15C

רב מודד קומביצ`ק דיגיטלי 12-690V LCD/רציפ/סדר/קוטב UNI-T UT15C

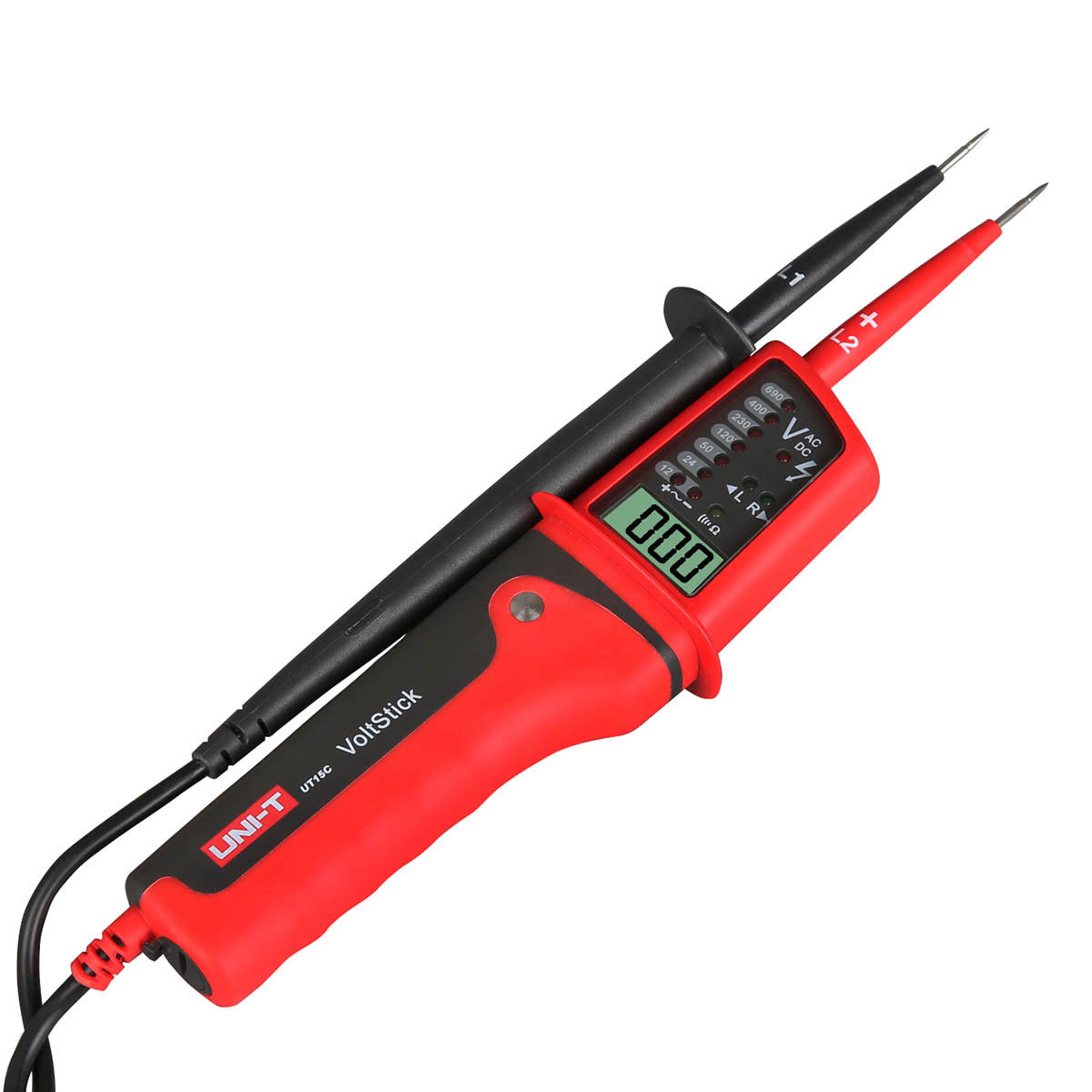

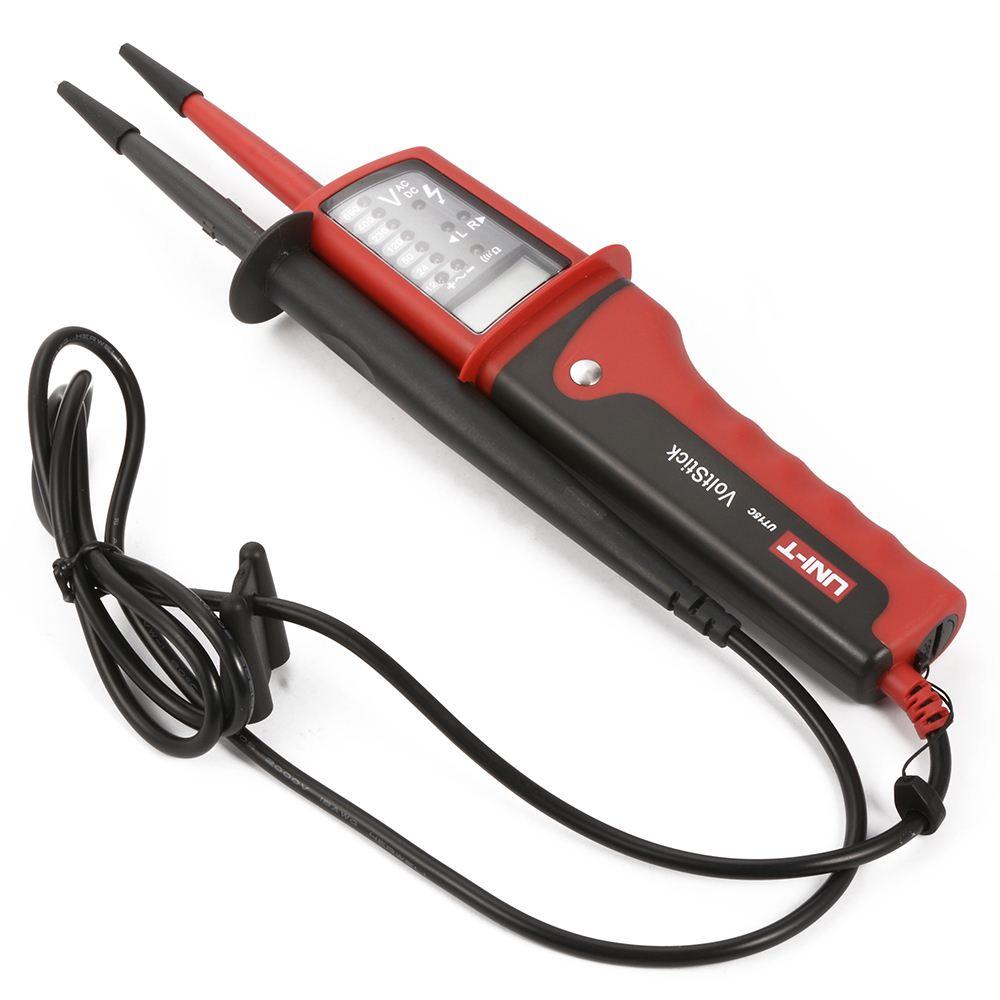

UT15C Waterproof Type Voltage Tester

T15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It is applicable to smelting, electron, manufacture, fossil oil, national defense, electricity and chemical engineering and so on. It can also solve the complex problems of electron, factory automation, electric power distribution and electromechanical device.

Applications:
It is applicable to smelting, electron, manufacture, fossil oil, national defense, electricity and chemical engineering and so on.

SPECIFICATION:
Voltage LED Steps (AC/D):
– 12 V (between 0 to 12 V LED will illuminate)
– 24 V (between 19 V +/- 2 V LED will illuminate)
– 50 V (between 48 V +/- 6 V LED will illuminate)
– 120 V (between 110 V +/- 20 V LED will illuminate)
– 230 V (between 200 V +/- 20 V LED will illuminate)
– 400 V (between 340 V +/- 30 V LED will illuminate)
– 690 V (between 520 V +/- 30 V LED will illuminate)

Continuity test: Range 0 to 100 kOhm. The continuity LED will illuminate and buzzer will sound
Phase Rotation Test: 50Hz to 60Hz
Range Selection: Automatic
Polarity Detection: Positive & Negative
Low Battery Display: Short circuit two leads, LED and beeper do not on that means the battery is low
Torch: Yes
Single Lead (L2) Voltage Detection: It is intended only as a quick check. 100V to 690V, 50Hz to 400Hz
Short Circuit Detection: Yes

GENERAL CHARACTERISTICS:
Power: 2x 1.5 V battery (AAA)
LCD display (AC/DC): 24V to 690V (+/- 3%+5)
Product Net Weight: 210 g
Product size: 275 x 51 x 30 mm
