רב מודד UNI-T UT136D

רב מודד מתקדם UT136D UNI-T מתח AC+DC 500V/זרם AC+DC/התנגדות /NCV

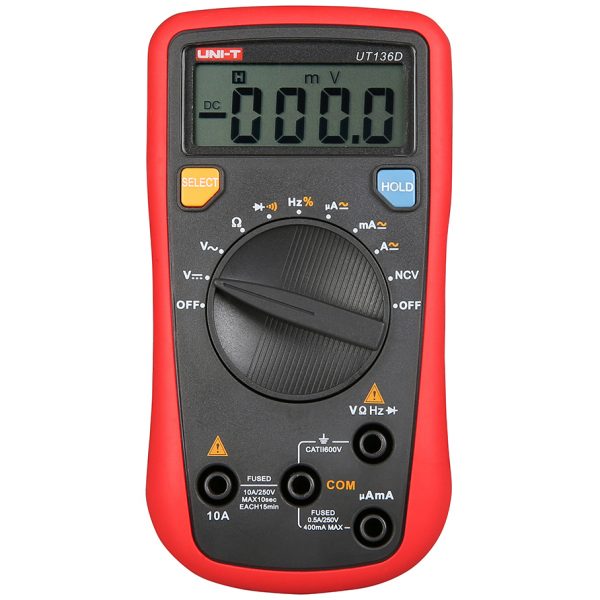

UT136D Digital Multimeter (Discontinued)

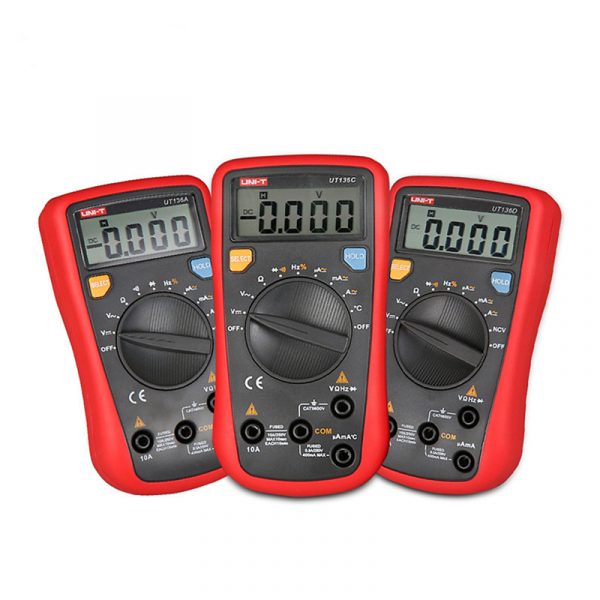

UT136 series digital multimeters a re general type auto ranged meters. The series is small in size, handy for all ope rating environments. Its 4000 count auto range feature allows quick and effective measurements. UT136 series are great tools for electricians and DIYers.





1. Auto range: 4000 display count
2. Auto power off
3. Auto range
4. NCV (UT136D)
5. Modern appearance, palm size design, comfortable grip, easy to carry







UT136 series are mini handheld auto-ranging digital multimeters that offer users complete functions, stable performance, low power consumption, novel structural design, high degree of safety and reliability, and therefore become an ideal portable tool for maintenance and repairing.



Applicable fields are homes, schools, metallurgy, communications, manufacturing, national defense, electric power, chemical industry, ect, and the series is a best choice for electric circuit/equipment maintenance and repairing.



Specifications ： Range Best Accuracy



Model ： UT136D
DC Voltage ： 400mV/4V/40V/400V/500V ±(0.8%+1)
AC Voltage ： 400mV/4V/40V/400V/500V ±(1.2%+3)
DC Current ： 400uA/4mA/40mA/400mA/4A/10A ±(1.0%+2)
AC Current ： 400uA/4mA/40mA/400mA/4A/10A ±(1.2%+5)
Resistance ： 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2)
Frequency ： 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3)
Duty Cycle ： 0.1%~99.9% √



Features
Diode ： √
Continuity Buzzer ： √
NCV ： √
Auto Power Off ： √
Low Battery Display ： √
Input Impedance for Voltage Measurement ： ≥10MΩ √
Data Hold ： √
Max. Display ： 3999
General Characteristic
Power ： 9VBattery(6F22) (not included）
LCD Size ： 49mm×18mm
Product Color ： Red +Grey
Product Net Weight ： About 200g
Product Size ： 72mm×137mm×35mm
Standard Accessories ：Test leads

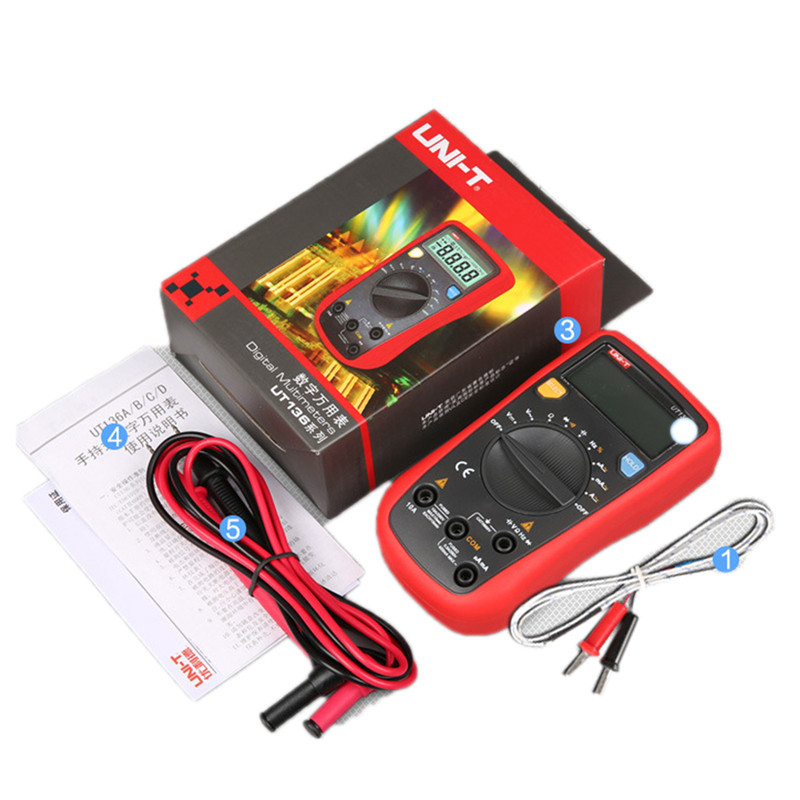

Package content:（1 x UNI-T UT136D）
1 x UT136D Multimeter (Battery is no include)
1 x Test leads





Specifications



Range



UT136A



UT136B



UT136C



UT136D







DC voltage (V)



400mV/4V/40V/400V/500V



±(0.8%+1)



±(0.8%+1)



±(0.8%+1)



±(0.8%+1)







AC voltage (V)



400mV/4V/40V/400V/500V



±(1.2%+3)



±(1.2%+3)



±(1.2%+3)



±(1.2%+3)







DC current (A)



400μA/4mA/40mA/400mA/4A/10A



±(1.0%+2)



±(1.0%+2)



±(1.0%+2)



±(1.0%+2)







AC current (A)



400μA/4mA/40mA/400mA/4A/10A



±(1.2%+5)



±(1.2%+5)



±(1.2%+5)



±(1.2%+5)







Resistance (Ω)



400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ



±(1.0%+2)



±(1.0%+2)



±(1.0%+2)



±(1.0%+2)







Capacitance (F)



4nF/40nF/400nF/4μF/40μF/100μF







±(4.0%+3)















Temperature (℃)



-10℃~1000℃











±(2.5%+3)











Frequency (Hz)



10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz



±(0.5%+3)



±(0.5%+3)



±(0.5%+3)



±(0.5%+3)







Duty cycle



0.1%~99.9%



√



√



√



√







Features







Diode







√



√



√



√







Continuity Buzzer







√



√



√



√







NCV



















√







Auto power off







√



√



√



√







Low battery display







√



√



√



√







Input impedance for voltage measurement



Around 10MΩ



√



√



√



√







Data Hold







√



√



√



√







Max. Display







3999



3999



3999



3999







General Characteristics







Power



9V battery (6F22)







Display



49mm × 18mm







Product net weight



About 200g (Battery included)







Product color



Red and grey







Product size (W x H x D)



72mm × 137mm × 35mm







Standard accessories



UT136A/B/D: Test leads, Battery; UT136C: Test leads, battery, point contact, temperature probe







Standard individual packing



Gift box, English manual







Standard quantity per carton



60pcs







Standard carton measurement



540mm × 310mm × 350mm







Standard carton gross weight



About 22kg
